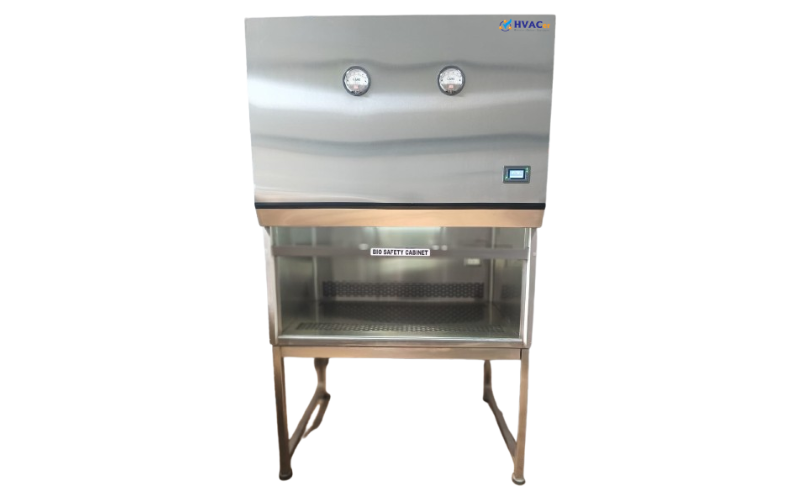

Biosafety Cabinet

Biosafety Cabinets are specialized workstations widely used in clinical, pharmaceutical, life science, and industrial laboratories where experiments require a highly contaminant-free environment. Also known as biological safety cabinets and biohazard safety cabinets, these are made in three different class types: Class 1, Class 2, and Class 3. Class 2 is widely used in microbiology laboratories because it provides protection to both the product and personnel. The biosafety level factor determines which BSC should be used in a laboratory. These cabinets are considered safer than other clean benches because such BSCs effectively eliminate risks to operators/staff, samples, and the environment from pathogenic biological agents (PBA) and microorganisms responsible for spreading airborne infections.

Biosafety Cabinet Features

• Designed according to GMP-Guidelines for easy cleaning and disinfection
• Sliding Glass Door
• Cabinet Fabricated in SS 304 / 316 Structure
• Re-Circulated Filtration System
• Gel Seal Type Supply Minipleat HEPA Filter – For Supply and Exhaust 0.3 Micron, H14 Grade with Efficiency 99.999%
• EU-5 Grade Pre-Filter With SS 304 Flange
• Air velocity: 0.45±0.05 mps (90±20FPM) Below Six Inch of Grill
• Digital Differential Pressure Gauge With High Low Alarm
• EC Series Motor Blower – Supply Blower and Exhaust Blower
• Table with SS Top having approx. 3”D perforation at the front and back
• Measuring system for differential pressure & volume flow / air velocity (If Required)
• Pre-Installed LED and UV Germicidal Light
• Switch Socket, Sash Up, and Sash Down
• Control System-4.3 Inch HMI with Inbuilt UV Hour Meter
• SS 304 PAO Port, SS 304 Atmospheric Nozzles
• SS 304 Gas Cock
• Sound Level less than 70 db on Scale
• Power Supply 230V ± 10V, 50 Hz, Single Phase
